Product Details:
|

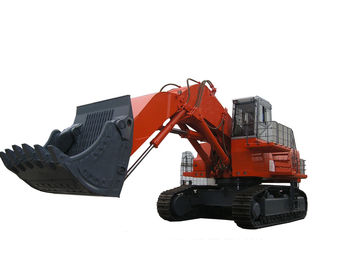

| Color: | Red Or Printed | Name: | Large& Super Large Hydraulic Excavator |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | BONNY | Operating Weight: | 100t |
| Max.torque: | 756kN | Rated Speed: | 2.4 Km/h |
| Diesel Engine Power: | 503kw | ||
| Highlight: | construction equipment,CUMMINS Hydraulic Crawler Excavator |
||
| No. | Item | Unit | Date | |||
| Face shovel | Backhoe | |||||
| 1 | Machine weight | t | 125 | 116 | ||
| 2 | Bucket capacity | Standard | m3 | 6.5 | 6.5 | |
| Range | m3 | 6.0~8.0 | 3.5~7.0 | |||
| 3 | Power system | Electromotor | Model | YJK4004-4 | ||
| Power /Speed | kW/rpm | 450/1485 | ||||
| Voltage | V | 6000 | ||||
| 4 | Hydraulic system | Type | Three pumps and three loops, limit load variable system | |||
| Max. pressure of main oil circuit | MPa | 32 | ||||
| Max. flow of main oil circuit | L/min | 2×522 | ||||
| Swing type | Independence open type | |||||
| Flow of swing oil | 1×522 | |||||
| Operating style | Pilot control | |||||
| Hydraulic oil tank capacity | L | 1278 | ||||
| 5 | Performance | Swing speed | r/min | 5.8 | ||
| Travel speed | km/h | 2.4 | ||||
| Max. pulling force | KN | 735 | ||||
| Gradeability | % | 70 | ||||
| Ground pressure | MPa | 0.127 | ||||
| Circulating time of operation | s | 22 | ||||
| 6 | Working date | Boom length | mm | 5450 | 7800 | |
| Stick length | mm | 3700 | 3400 | |||
| Max. digging radius | mm | 11299 | 13405 | |||
| Max. digging depth | mm | 3103 | 7315 | |||
| Max. digging height | mm | 13164 | 12529 | |||
| Max. unloading height | mm | 9572 | 8958 | |||
| Max. digging force of stick | KN | 523 | 416 | |||
| Max. breakout force of bucket | KN | 495 |
550
|
|||
Mining hydraulic excavator is featured with:
1.Face-shovel and backhoe are covered from 40-220t.
2.Diesel engine or power driven is available for the excavator with 46t and above.
3.Voltage grade for power driven excavator:380V low voltage or 6000V high voltage.
What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
