Product Details:
|
| Max. Torque: | 60 | Max. Diameter: | 1200mm |
|---|---|---|---|
| Max. Depth: | 20m | ||
| Highlight: | Durable modeling hydraulic rotary piling rig,KR60C hydraulic rotary piling rig,1200mm hydraulic piling rig |
||

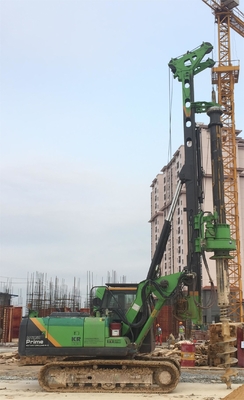

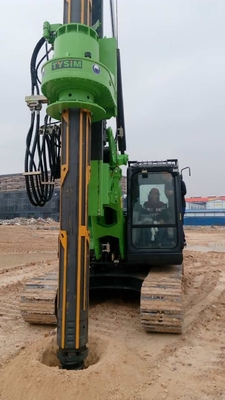

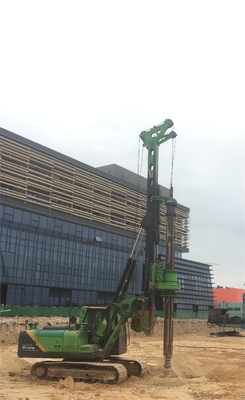

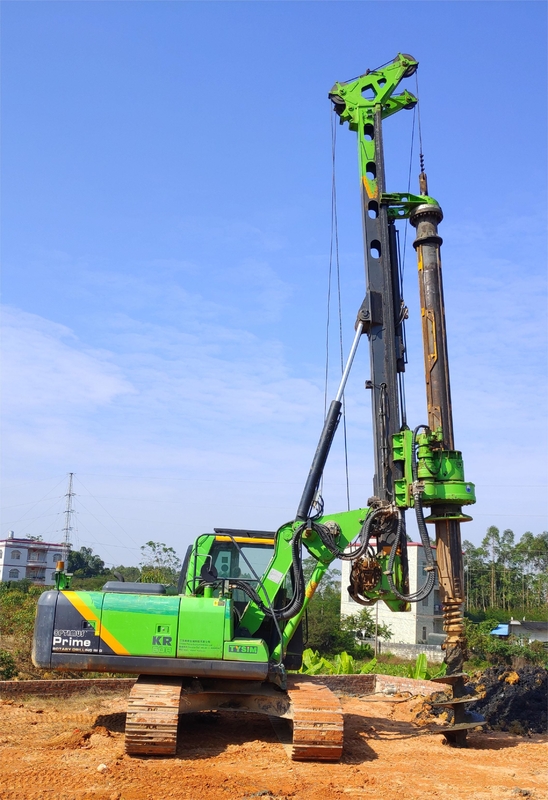

| Technical Specification of KR60A Rotary Drilling Rig | |
| Type | KR60C |
| Torque | 60 kN.m |
| Max. drilling diameter | 1200 mm |
| Max. drilling depth | 20 m |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 60 kN |
| Max. crowd pull | 90 kN |
| Main winch line pull | 65kN |
| Main winch line speed | 48 m/min |
| Auxiliary winch line pull | 20kN |
| Auxiliary winch line speed | 48 m/min |
| Stroke(crowd system) | 2000 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 4° |
| Max. hydraulic pressure | 34.3 MPa |
| Control hydraulic pressure | 3.9 MPa |
| Travel speed | 2.8km/h |
| Traction force | 114 kN |
| Operating height | 10600 mm |
| Operating width | 2690 mm |
| Transport height | 3250 mm |
| Transport width | 2690 mm |
| Transport length | 9500 mm |
| Overall weight | 20t |
| Chassis | |
| Type | sinomach |
| Engine | B3.9-C |
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
