320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm

320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm
320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm
320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm 320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm 320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm 320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm

Large Image :  320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR300C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Nude packing ；overall transport by sea with roll-on-roll-off ship.
Delivery Time: 30-45 working days after receiving the advance payment
Payment Terms: D/A, D/P, L/C, T/T
Supply Ability: 5 set per month
Contact Now

320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm

Description
Product Name: Piling Rig Machine Max Drilling Diameter: 1000
Max Torque: 300 Max Drilling Depth: 23(17+6)
Main Winch Force: 320 Crownd Force: 220
Stroke: 17 Base Engine: CAT C-9
Highlight:

Diesel Engine Piling Rig

,

320KN Drilling Rig Machine

,

KR300C Piling Rig Machine

Drilling Rig KR300C Diesel Engine Piling Equipment
The original made in USA powerful Cummins engine is selected to integrate with the core technology of TYSIM in electronic
control system and hydraulic system to maximize its working performance.
The whole series of Tysim products have passed GB certification and EU EN16228 standard certification, better dynamic and
static stability design to ensure construction safety;
New and upgraded Caterpillar chassis with high quality to ensure the best performance of the whole machine;
Add pressure and power head torque perfectly match,
more efficient rock entry;

Technical specification of KR300C rotary drilling rig
Torque 300kN.m
Max. diameter 2200 mm
Max. drilling depth 80/54 m
Speed of rotation 7~23 rpm
Max. crowd pressure 260 kN
Max. crowd pull 260 kN
Main winch line pull 340 kN
Main winch line speed 72 m/min
Auxiliary winch line pull 90 kN
Auxiliary winch line speed 70 m/min
Stroke(crowd system) 6000 mm
Mast inclination(lateral) ±5°
Mast inclination(forward) 5°
Max. operating pressure 34.3 MPa
Pilot pressure 3.9MPa
Travel speed 1.5 km/h
Traction force 510 kN
Operating height 22685 mm
Operating width 4300 mm

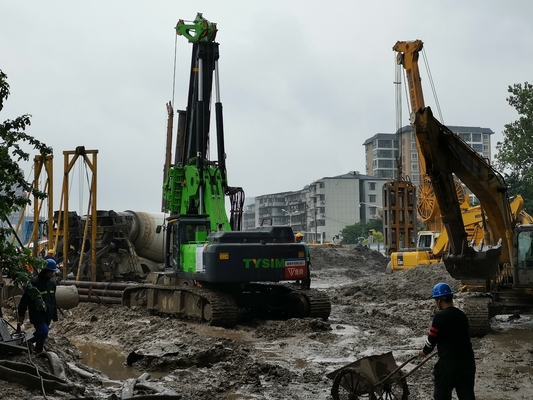

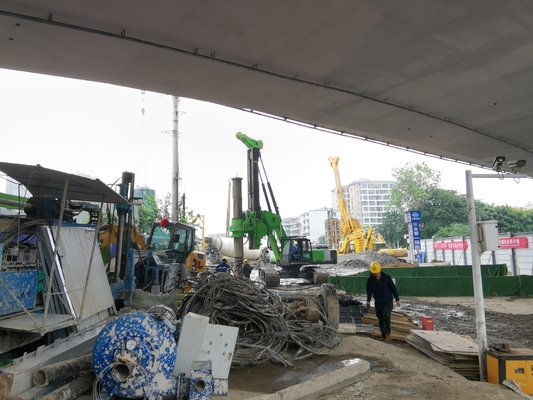

320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm 0320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm 1320KN Drilling Piling Rig Machine KR300C Diesel Engine Equipment Stroke 6000 Mm 2
