Product Details:
|
| Torque: | 165 KN.m | Max. Drilling Diameter: | 1500 Mm |
|---|---|---|---|
| Max. Drilling Depth: | 58 M | Max. Crowd Pressure: | 155 KN |
| Auxiliary Winch Line Pull: | 160 KN | Speed Of Rotation: | 7~28 Rpm |
| Max. Crowd Pull: | 160 KN | Main Winch Line Pull: | 160 KN |
| Transport Height: | 3321mm | Transport Width: | 3100 Mm |
| Transport Length: | 13230 Mm | Overall Weight: | 49 T |
| Highlight: | ce hydraulic piling rig,1500mm hydraulic piling rig,58m hydraulic piling rig machine |
||
Max drilling diameter 1300mm KR165C Piling machine Used borehole drilling machine Small bored pile driving machine
Features:
Torque: 165kN.m
Max. drilling diameter:00mm
Max. drilling depth: 43m
Using Original CAT 320D Excavator Chassis
Competitive Advantage:
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier in China
Specification:
| Technical Specification of KR125C Rotary Drilling Rig | |
| Type | KR165C |
| Torque | 165 kN.m |
| Max. diameter | 1500 mm |
| Max. drilling depth | 58 m |
| Speed of rotation | 7~26 rpm |
| Max. crowd pressure | 155 kN |
| Max. crowd pull | 160 kN |
| Main winch line pull | 160 kN |
| Main winch line speed | 80 m/min |
| Auxiliary winch line pull | 60 kN |
| Auxiliary winch line speed | 70 m/min |
| Stroke(crowd system) | 4200 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 3° |
| Max. hydraulic pressure | 35 MPa |
| Control hydraulic pressure | 3.9 MPa |
| Max. moving speed | 2.8 km/h |
| Operating height | 19152 mm |
| Operating width | 3100 mm |
| Transport height | 3321 mm |
| Transport width | 3100 mm |
| Transport length | 13970 mm |
| Overall weight | 36 t |
| Chassis | |
| Type | CAT326D |
| Engine | CAT-C7.1 |
Description:
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.

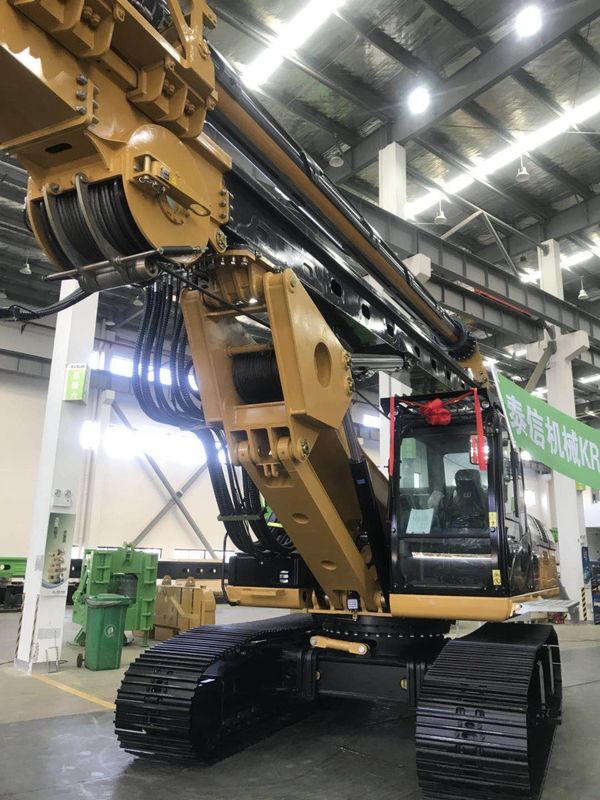

Product Display
packing show
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
