Product Details:
|
| Pile Diameter: | 600-1800mm | Max.rod Pressure: | 360kN |
|---|---|---|---|
| Crowd Stroke: | 150mm | Max. Crowd Pressure: | 34.3MPa |
| Max. Cylinder Required: | 30L/min | Max. Single Cutting Height: | ≤300mm |
| Overall Weight: | >=4.5t | Color: | Green Or Customized |
| Highlight: | diameter 600mm hydraulic pile breaker,tysim hydraulic pile breaker,diameter 1800mm pile breaker |
||

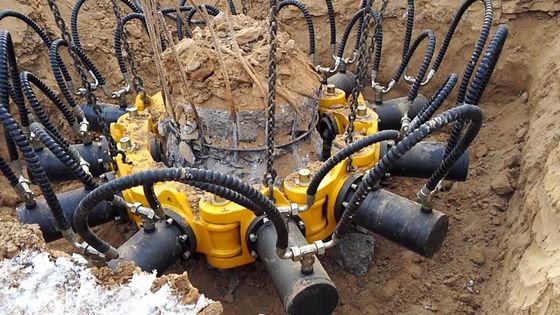

Hydraulic Pile Breaker KP315/380:
| Technical specification |
13 modules combination KP315 |
18 modules combination KP380 |
| Pile diameter | 300~1050 mm | 600~1800 mm |
| Max. rod pressure | 280 kN | 600 kN |
| Max. cylinder stroke | 135 mm | 150 mm |
| Max. crowd pressure | 34.3 MPa | 34.3 MPa |
| Max. single cylinder flow | 20 L/min | 30 L/min |
| Quantity/8h | 60/8 h | 48/8 h |
| Max. single cutting height | ≤300 mm | ≤300 mm |
| Excavator capacity | ≥20 | ≥35 |
| Single module weight | 100 kg | 230 kg |
| Single module size | 520×444×316 mm | 696×566×350 mm |
| Operating size | Φ2098×4000 mm | Φ3316×4840 mm |
| Overall weight | 1.7 t | 4.5 t |
(1) Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder
(2) Module-----Steel Casing, which is stronger than iron welding
(3) Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity

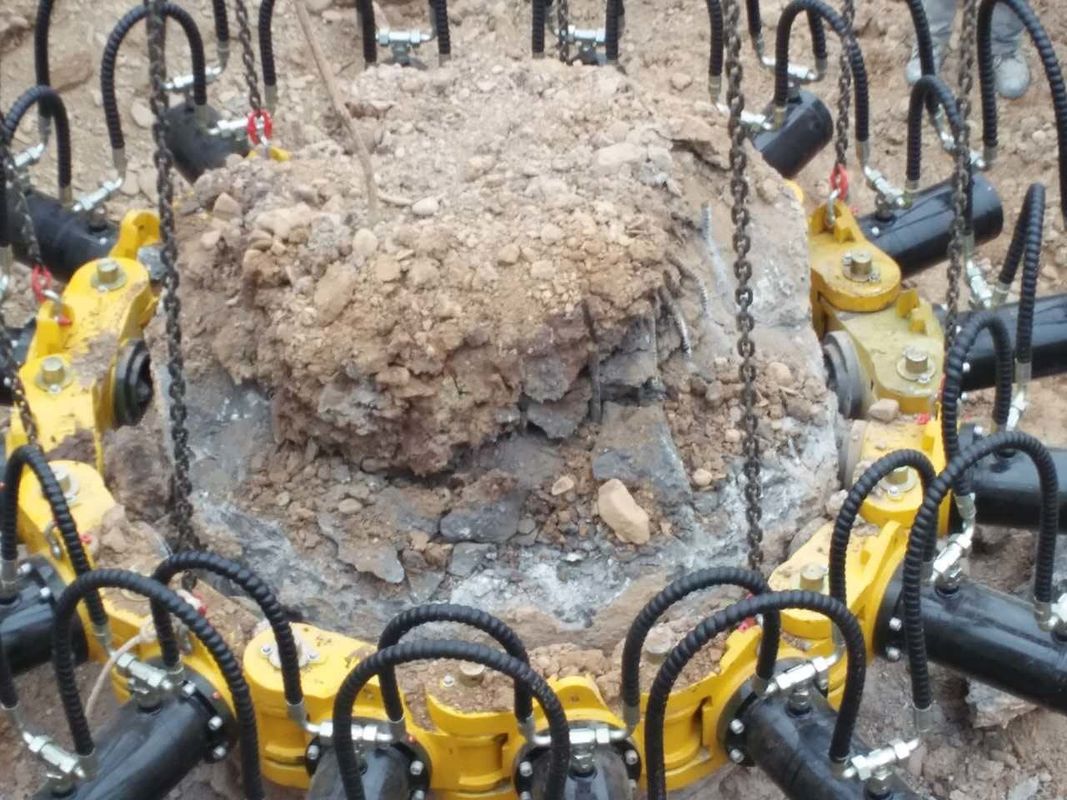

The operation steps of the pile
(1) Make the pile breaker move to the place of the pile head.
(2) Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.
(3) Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.
(4) After cutting the pile, hoist the concrete block.
(5) Move the crushed pile to the designed position.
(1) The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
(2) Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
(3) It can be installed on a larege variety of construction machinery, realizing the versatility and economy.
FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
