Product Details:
|
| Torque: | 125 KN.m | Max. Diameter: | 700 Mm |
|---|---|---|---|
| Max. Drilling Depth: | 15 M | Mast Inclination(forward): | 3° |
| Transport Height: | 3500 Mm | Transport Width: | 2990 Mm |
| Transport Length: | 13960 Mm | Overall Weight: | 35 T |
| Highlight: | 15m rotary piling rig,700mm rotary piling rig,tysim bored pile drilling machine |
||

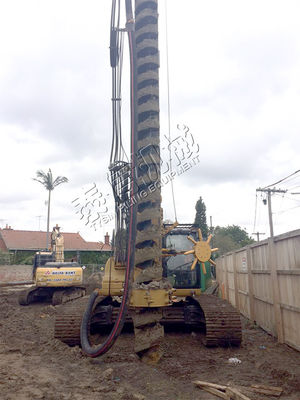

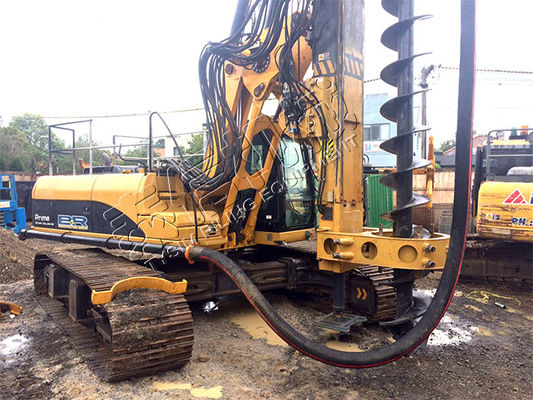

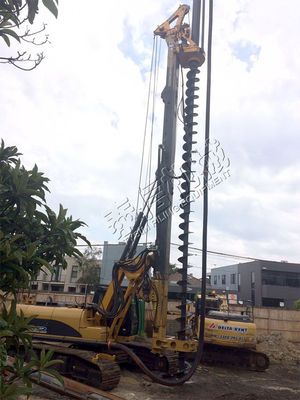

TYSIM KR125M Max. Drilling Diameter 700 mm Max. Drilling Depth 15 m
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
Technical Specification
| Technical specification of KR125M rotary drilling rig (CFA &rotary drilling rig) | ||
|
CFA construction method
|
Max. diameter | 700mm |
| Max. drilling depth | 15m | |
| Main winch line pull | 240 kN | |
|
Rotary drilling construction method
|
Max. Diameter | 1300 mm |
| Max. drilling depth | 37m | |
| Main winch line pull | 120 kN | |
| Main winch line speed | 78 m/min | |
|
Working parameters
|
Max. torque | 125 kN.m |
| Auxiliary winch line pull | 60 kN | |
| Auxiliary winch line speed | 60 m/min | |
| Mast inclination(lateral) | ±3° | |
| Mast inclination(forward) | 3° | |
| Max. operating pressure | 34.3 MPa | |
| Pilot pressure | 3.9 MPa | |
| Travel speed | 2.8 km/h | |
| Traction force | 204 kN | |
|
Operating size
|
Operating height | 18200 mm(CFA)/14800mm(rotary drilling) |
| Operating width | 2990 mm | |
|
Transport size
|
Transport height | 3500 mm |
| Transport width | 2990 mm | |
| Transport length | 13960 mm | |
| Total weight | Overall weight | 35 t |
Product Details
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
